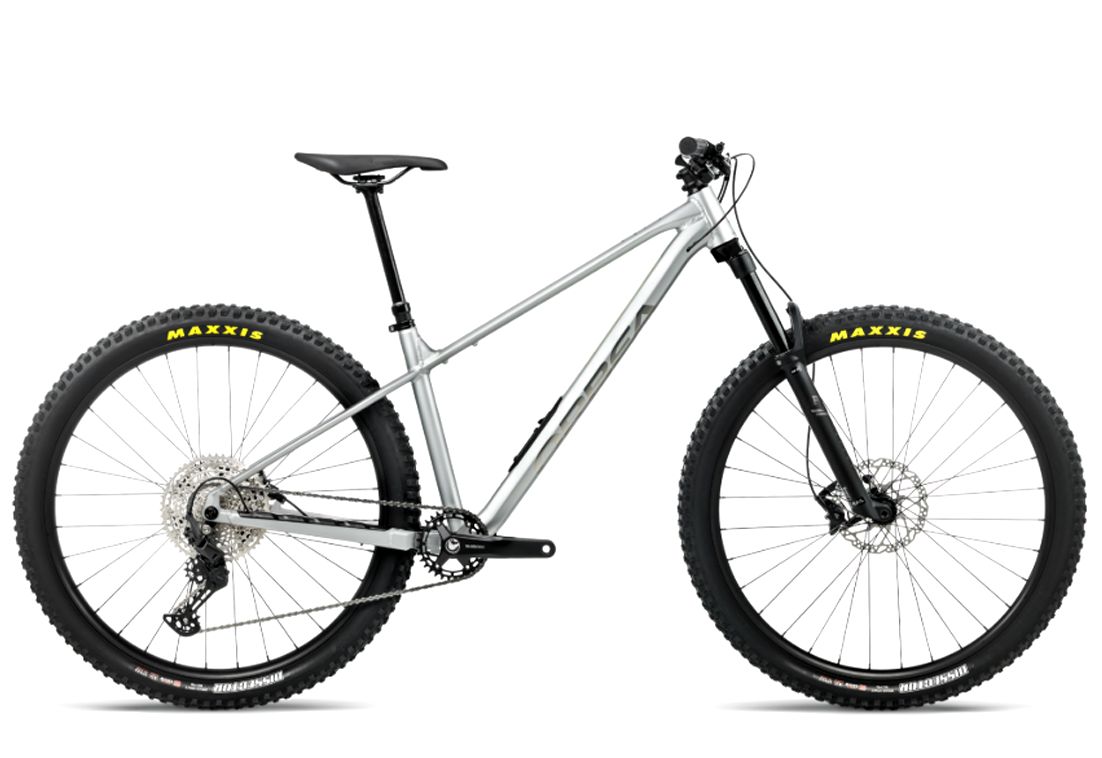

2027-ORBEA LAUFEY H10 Silver-LARGE

Orbea | Trail Hardtail

Trail Angles, Hardtail Price

64.5 degrees at the head, 77 at the seat, 140mm of fork. These are full-suspension numbers on an alloy hardtail.

140mm Fork Travel

64.5° Head Angle

77° Seat Angle

440mm Chainstay, Every Size

The 2027 Orbea Laufey H10 is a 29-inch alloy trail hardtail with a 140mm air-sprung FOX 34 fork, a Shimano Deore 12-speed drivetrain, a dropper post, and internal downtube storage. Head angle is 64.5 degrees, seat angle is 77. {{PRICE}}.

The Geometry

Read those two numbers again. A 64.5 degree head angle and a 77 degree seat angle are what you find on a modern full-suspension trail bike, not on a hardtail. Most hardtails in this price range still run something near 67 degrees at the head and 74 at the seat, which is a bike built to climb fire road and survive the descent. This one is built to enjoy the descent. The steep seat angle puts your weight forward over the bottom bracket so the front wheel stays planted on a long climb, and the short straight seat tube takes a long dropper at every size. Chainstays are 440mm on all four sizes, which is longer than most hardtails and deliberately so: it buys stability at speed on a bike with no rear suspension to settle it down.

The Frame

Triple-butted 6061 aluminium, hydroformed to put stiffness where it helps and compliance where it does not hurt. Orbea calls the approach Powerspine: the head tube, down tube, and bottom bracket area are stiffened for precise steering, while the top tube, seat stays, and chainstays are slimmed to take the edge off trail buzz. It carries the LOCKR downtube storage compartment, which is genuinely unusual on an alloy hardtail at this price and means a tube and a multi-tool ride inside the frame instead of in your pocket. Boost 12x148 rear spacing, ISCG05 chainguide mounts, internal cable routing through ports in the tubing rather than the headset, and clearance for a 29x2.6in tire. Orbea covers the frame with a lifetime warranty.

The Fork

A FOX 34 Float AWL Sport at 140mm. AWL stands for Adventure Without Limits, and it is worth knowing what that line actually is, because the name gets read as a downgrade and it is not one. It uses the FOX 34 chassis with an EVOL air spring and a sealed RAIL damper, with rebound and compression both externally adjustable without tools. FOX rates it to a 169kg total system weight and builds it to e-bike testing standards, which is a higher durability bar than a trail-trim fork is held to. Being straight about the trade: this is not Performance or Factory trim, so there is no GRIP2 damper and no Kashima coating, high and low speed compression share a single lever, and it carries more weight than a lighter 34. On a hardtail that will get ridden hard and occasionally loaded, the durability rating is arguably the more useful end of that bargain.

The Build

Shimano Deore M6200 12-speed, rear derailleur and shifter, running a 10-51T Shimano cassette against a 32T MT520 crank. Shimano MT600 hydraulic discs, which is a step above the base Deore brake and welcome on a bike with these angles. A dropper post comes fitted with a Shimano I-Spec remote, integrated at the brake lever rather than clamped separately. Maxxis Dissector 2.40in up front for cornering bite, with a faster-rolling Maxxis Rekon out back, both tubeless ready on 29in alloy rims at 29c internal. Orbea's own OC Mountain Control MC30 bar at 800mm with 20mm rise, on a 35mm alloy stem.

How It Compares

Orbea numbers its builds backwards from what most people expect. Lower is better. The H30 sits below this bike, not above it, and the H10 sits near the top of the alloy Laufey range. Against the H30 you are paying for four things: a FOX 34 AWL in place of a RockShox Recon, Shimano MT600 brakes in place of the base set, a full Shimano 12-speed cassette and MT520 crank, and a Maxxis Dissector front tire in place of lesser rubber. The fork and the front tire are the two that change how the bike rides, and they are the two that cost the most to upgrade later. Every build in the range shares the same frame, the same geometry, the same LOCKR storage, and the same lifetime warranty, so this is a component decision rather than a frame decision.

Where It Rides

A hardtail teaches you to pick lines, and the trails around Chattanooga and through the North Georgia corridor will teach you fast. Rocky, rooty, and steep in places, which is exactly the terrain that makes a slack hardtail with a dropper and real tires a good time rather than a punishment. This is also a sensible bike for a rider moving up from an entry hardtail who is not ready to spend full-suspension money, and an honestly good second bike for someone who already owns one. Come ride it. We will set fork sag to your weight, which on this bike matters more than on most.

Full Specification

Frame	Orbea Laufey Hydro, triple-butted alloy, 29in, Boost 12x148, ISCG05, LOCKR downtube storage, internal routing
Fork	FOX 34 Float AWL Sport, 140mm, EVOL air spring, sealed RAIL damper, external rebound and compression, QR15x110
Headset	Acros alloy, 1-1/8in to 1-1/2in integrated
Rear Derailleur	Shimano Deore M6200 SGS Shadow Plus, 12-speed
Shifter	Shimano Deore M6200, I-Spec EV
Cassette	Shimano CS-M6200, 10-51T, 12-speed
Chain	Shimano M6100, 12-speed
Crankset	Shimano MT520, 32T, 170mm all sizes
Brakes	Shimano MT600 hydraulic disc
Wheels	Alloy, tubeless ready, 29in, 29c internal, 32H
Tires	Maxxis Dissector 2.40in front, Maxxis Rekon rear, tubeless ready
Tire Clearance	Up to 29x2.6in
Handlebar	OC Mountain Control MC30, 800mm, 20mm rise
Stem	Alloy 3D forged, 35mm interface, -7 degrees, 45mm S to L, 55mm XL
Seatpost	OC Mountain Control MC22 dropper, Shimano SL-MT500 I-Spec EV lever, 170mm S, 200mm M and L, 230mm XL
Saddle	Selle Royal 2058 DRN
Grips	OC Lock On
Head Angle	64.5 degrees, all sizes
Seat Angle	77 degrees, all sizes
Reach	S 427mm, M 451, L 475, XL 500
Stack	S 633mm, M 642, L 655.5, XL 664.5
Top Tube (effective)	S 572mm, M 598, L 625, XL 652
Seat Tube (C-T)	S 380mm, M 415, L 430, XL 460
Head Tube	S 95mm, M 105, L 120, XL 130
Wheelbase	S 1181.8mm, M 1210.1, L 1240.6, XL 1269.9
Chainstay	440mm, all sizes
Bottom Bracket Drop	65mm, all sizes
Bottom Bracket Height	310mm, all sizes
Standover	440mm, all sizes
Fork Rake	44mm, all sizes
Fork Length	554mm, all sizes
Warranty	Orbea lifetime frame warranty
Price	$2195.00

Specifications subject to change without notice. Confirm current build details at time of order.
