AMFLOW PX CARBON - M, L, XL, XXL

AMFLOW PX CARBON - FULL-POWER EMTB

The same Avinox M2S motor and carbon frame as the Pro, at a more accessible entry point

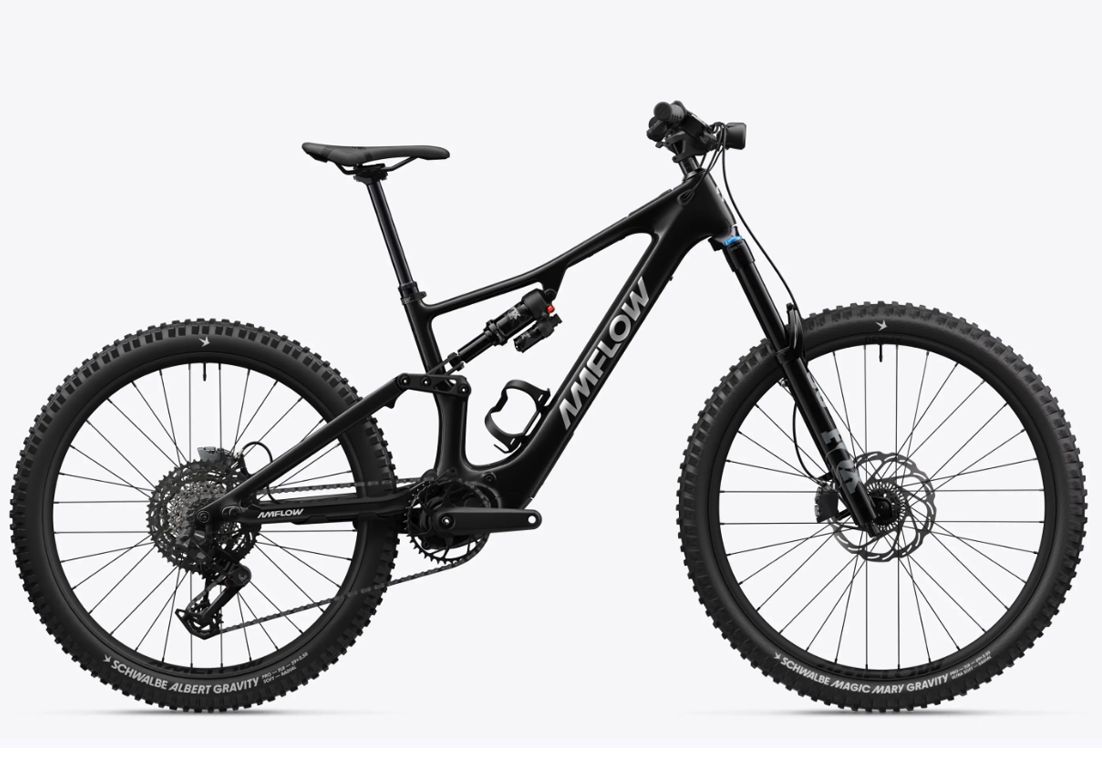

The Amflow PX Carbon is a full-power, full-carbon electric mountain bike powered by the Avinox M2S Drive Unit, delivering 150N·m of peak torque in a complete bike under 21kg. It shares the same frame, geometry system, motor, battery, and brakes as the PX Carbon Pro, stepping down to FOX Performance suspension and alloy wheels to hit a sharper price point without giving up the core performance that makes the PX platform special. Available for preorder now with early June 2026 delivery at $7,999.

Suck Creek Cycle is one of the few authorized Amflow dealers in the region, serving riders across Chattanooga, Knoxville, Nashville, Atlanta, and throughout Tennessee, North Georgia, and the greater Southeast. The Amflow PX Carbon is available for preorder now with early June 2026 delivery. We provide professional assembly, full system inspection, and setup support before every handoff. National shipping available. Contact us for preorder details and sizing help.

Who this bike is for

The PX Carbon is for riders who want the full Amflow PX experience — the Avinox M2S motor, the carbon frame, the 40 geometry combinations, and the Magura Gustav Pro brakes — without stepping all the way up to Factory-grade suspension and carbon wheels. If you are moving from a traditional MTB to your first serious eMTB and want a platform that will not hold you back, this is the right starting point. It is also a strong choice for riders who plan to upgrade suspension components over time and want to put their budget into the frame and motor rather than a stock fork they will swap anyway. It is not the right fit if you want the full Factory FOX tune or the weight savings that come with carbon rims out of the box.

Avinox M2S motor — 150N·m and whisper quiet

The PX Carbon runs the same Avinox M2S Drive Unit as the Pro. That means 150N·m of peak torque in Boost mode, a 21.6% increase in torque density over the previous generation, in a motor that weighs just 2.59kg. Five assist modes including Auto and Boost, smart algorithms delivering a linear pedal feel, and operating noise as low as 45dBA. The motor is identical across both PX models. If the Avinox M2S is why you are buying into the PX platform, you do not give anything up here.

700Wh integrated battery with 3x fast charging

The 700Wh Avinox FP700 battery is integrated into the frame and identical to the Pro spec, paired with the same included Avinox 508W charger for 3x faster charging versus the 168W charger. Range tested at 144km under controlled conditions in Eco mode. XL and XXL frame sizes are compatible with the separately sold Avinox RS600 expansion battery for extended range capability. The integrated battery supports removal for charging outside the bike on all sizes.

40 geometry combinations | dial it in for any terrain

Same geometry system as the Pro, no compromises. Five head tube angle positions ranging plus or minus one degree from the 64.2 degree default, two bottom bracket height settings at 345mm and 349mm, and four chainstay length positions from 438mm to 451mm. All adjustment hardware is included in the box. This is the geometry platform that makes the PX one of the most tunable eMTBs on the market regardless of spec level.

FOX Performance suspension front and rear

The PX Carbon runs FOX Performance spec throughout. The FOX 36 Performance fork delivers 160mm of travel with GRIP damper and Sweep and LSR adjustment. The FOX Float X Performance rear shock runs a custom tune developed specifically for the PX platform. Both are MY2027 builds developed in direct collaboration with Amflow. Riders who want to step up to Factory internals later will find the FOX Performance chassis is a strong foundation for that upgrade path.

Magura Gustav Pro brakes and alloy mullet wheels

Braking is the same Magura Gustav Pro hydraulic disc with 4-piston calipers and 203mm Magura Sensor Rotors as the Pro model. No step-down here. The wheel spec moves to alloy rims — Amflow XMA-30 mullet setup with a 29-inch alloy front and 27.5-inch alloy rear, both 30mm inner width and tubeless ready, on SAPIM E-Light spokes. Tires are Schwalbe Magic Mary front and Schwalbe Albert rear in Gravity Pro compound. The alloy wheel build adds a small amount of weight compared to the carbon Pro spec but gives you a more impact-resistant rim for aggressive trail riding.

SRAM S1000 Eagle Transmission drivetrain

The PX Carbon runs the SRAM S1000 Eagle Transmission rear derailleur paired with an XS-1270 cassette in 10-52T and SRAM AXS Pod Controller for wireless shifting. The Avinox SL crank runs a 38T chainring tuned for the motor's power delivery. SmoothShift is supported, integrating with the Avinox Drive System for smooth gear changes while coasting. The S1000 is a capable, trail-proven platform that handles the demands of eMTB riding without issue.

Smart system | GPS, Bluetooth, offline navigation

The PX Carbon includes GPS, Bluetooth, OTA updates, offline navigation, and remote locating as standard. The 2-inch OLED Control Display manages ride data, navigation, and system settings. Smart heart rate control and SmoothShift are included. The key difference from the Pro is that 4G IoT connectivity is not included — PX Carbon riders who want 4G-based remote locating and connectivity features will need to purchase an IoT Nano SIM card separately. For most trail riding use cases, the standard connected feature set covers everything you need.

Quick spec clarity

• Frame: Amflow PX Carbon, carbon fiber, approx. 2.4kg
• Motor: Avinox M2S Drive Unit, 250W rated, 150N·m peak torque, 2.59kg
• Battery: Avinox FP700, 700Wh integrated, 500 charge cycles
• Expansion battery: Avinox RS600 compatible on XL and XXL (sold separately)
• Charger: Avinox 508W included, 3x faster than 168W charger
• Display: Avinox 2-inch OLED Control Display
• Assist modes: Eco, Trail, Turbo, Auto, Boost (5 total)
• Fork: FOX 36 Performance MY2027, 160mm travel, GRIP damper, Sweep/LSR adjustment, 15x110mm, 44mm offset
• Rear shock: FOX Float X Performance MY2027, custom tune, 2-position lever, LSR adjustment, 210x55mm
• Brakes: Magura Gustav Pro hydraulic disc, 4-piston calipers, 203mm Magura Sensor Rotors
• Rear derailleur: SRAM S1000 Eagle Transmission
• Cassette: SRAM XS-1270 Eagle Transmission, 10-52T
• Chain: SRAM Eagle 70 Transmission Flattop
• Crankset: Avinox SL Crank, 38T (155mm M/L, 160mm XL/XXL)
• Front wheel: Amflow XMA-30, alloy, 29-inch, 30mm inner width, 32H, tubeless ready
• Rear wheel: Amflow XMA-30, alloy, 27.5-inch, 30mm inner width, 32H, tubeless ready
• Front tire: Schwalbe Magic Mary Radial, 29x2.5, Gravity Pro, Ultra Soft, tubeless ready
• Rear tire: Schwalbe Albert Radial, 27.5x2.5, Gravity Pro, Addix Soft, tubeless ready
• Handlebar: Amflow Enduro Alloy, 800mm width, 40mm rise, 35mm diameter
• Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamp
• Grips: Amflow Enduro Grip 2 Lock-on
• Saddle: Amflow Mountain Saddle
• Dropper post: Amflow Dropper Post (190mm M/L, 210mm XL, 230mm XXL)
• Head tube angle: 64.2 degrees default, adjustable from 63.2 to 65.2 in 5 positions
• Chainstay length: 438mm to 451mm, 4 positions
• Bottom bracket height: 345mm or 349mm, 2 positions
• Smart features: GPS, Bluetooth, OTA updates, offline navigation, remote locating, smart heart rate control, SmoothShift (4G IoT requires separate SIM card purchase)
• Colors: Phantom Black, Moonstone Grey
• Certification: TUV SUD (bike and drive system), TUV Rheinland (charger)
• Price: $7,999
• Availability: Preorder now, early June 2026 delivery

How the PX Carbon compares

The PX Carbon and PX Carbon Pro share the same frame, motor, battery, geometry system, and brakes. The Pro steps up to FOX Factory suspension with GRIP X2 damper and full four-way adjustment, carbon wheels, SRAM X0 drivetrain, a carbon handlebar, titanium saddle rail, and includes 4G IoT connectivity as standard. If those upgrades matter to your riding, the Pro is worth the premium. If you want the core PX platform and the Avinox M2S motor at a sharper entry point, the PX Carbon delivers everything that makes this bike genuinely different from the competition. The Amflow PR Carbon is the trail-geometry alternative starting at $4,999 for riders prioritizing value above all else.

Amflow PX Carbon FAQ

What is the difference between the PX Carbon and the PX Carbon Pro?

The frame, motor, battery, geometry system, and Magura Gustav Pro brakes are identical across both models. The PX Carbon Pro upgrades to FOX Factory suspension with GRIP X2 damper, carbon wheels, SRAM X0 drivetrain, carbon handlebar, titanium saddle rail, and includes 4G IoT connectivity as standard. The PX Carbon runs FOX Performance suspension, alloy wheels, and SRAM S1000 drivetrain. For riders who want to put their budget into the motor and frame platform rather than component upgrades, the PX Carbon is the right call.

Does the PX Carbon have the same motor as the Pro?

Yes. Both PX models run the same Avinox M2S Drive Unit with 150N·m of peak torque, five assist modes including Auto and Boost, and operating noise as low as 45dBA. The motor is not a step-down on the standard PX Carbon.

Is the battery removable on the PX Carbon?

The 700Wh Avinox FP700 battery is integrated into the frame on all sizes. XL and XXL frame sizes are compatible with the separately sold Avinox RS600 expansion battery for extended range. The integrated battery supports removal for charging outside the bike on all sizes.

Does the PX Carbon have 4G connectivity?

Not as standard. The PX Carbon includes GPS, Bluetooth, offline navigation, and remote locating via Bluetooth. Riders who want 4G-based connectivity and distance-unlimited remote locating will need to purchase an IoT Nano SIM card separately. The PX Carbon Pro includes 4G IoT connectivity as standard.

What is the real-world range on the PX Carbon?

Amflow tested the 700Wh battery at 144km under controlled flat road conditions in Eco mode with an 80kg rider. Real-world trail range will be lower depending on assist level, terrain, rider weight, and conditions. The included 508W fast charger delivers 3x faster charging than the 168W charger for quick top-ups during longer days out.

Where can I buy an Amflow bike near Chattanooga, Atlanta, or in the Southeast?

Suck Creek Cycle is one of the only authorized Amflow dealers in the Southeast, serving riders in Chattanooga, Knoxville, Nashville, Atlanta, Ellijay, Blue Ridge, and throughout Tennessee, North Georgia, and the surrounding region. You can preorder the PX Carbon directly through us now for early June 2026 delivery. National shipping is also available for buyers outside the region.

Are there any Amflow dealers near the North Georgia mountains?

Suck Creek Cycle in Chattanooga is one of the closest authorized Amflow dealers to the North Georgia mountain biking corridor, including Ellijay, Blue Ridge, Dalton, and surrounding trail communities. We are a short drive from some of the best eMTB terrain in the Southeast and support preorders, setup, and service for riders across the region. National shipping is available for buyers who cannot make the trip.

When will my preorder ship?

We are taking preorders now with early June 2026 delivery. Contact us to get your name on the list and confirm sizing. We will follow up with more specific delivery timing as it is confirmed.

Can you ship the Amflow PX Carbon nationally?

Yes. We support national buyers with professional assembly, full system inspection, and secure bike packing for shipment. If you are local to Chattanooga, we can schedule a setup appointment to dial in fit and suspension before you ride.

*Product specifications are subject to change without notice.
