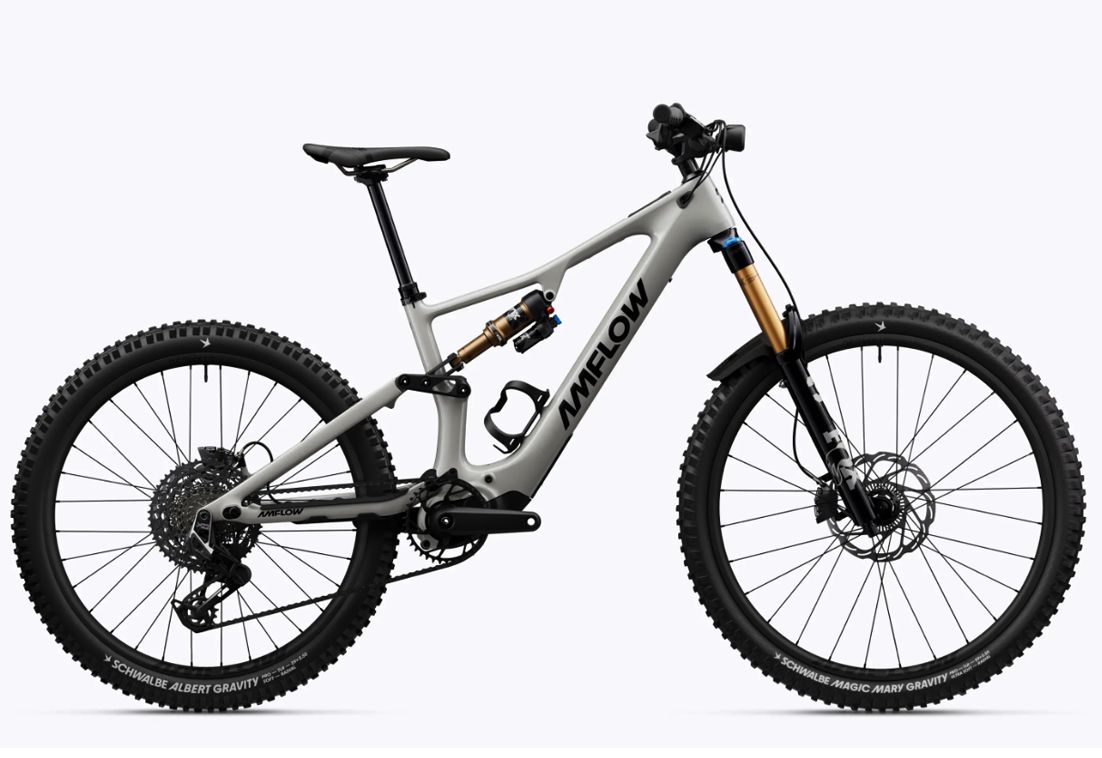

AMFLOW PX CARBON PRO - M, L, XL, XXL

AMFLOW PX CARBON PRO - FULL-POWER EMTB

Sub-21kg carbon eMTB with the most torque-dense motor in its class

The Amflow PX Carbon Pro is a full-power, full-carbon electric mountain bike built around the Avinox M2S Drive Unit, delivering 150N·m of torque in a complete bike that comes in at 20.6kg. A 700Wh high-capacity battery with 3x fast charging, 40 geometry adjustment combinations, FOX suspension tuned exclusively for Amflow, and Magura Gustav Pro brakes with 203mm rotors make this one of the most capable eMTB packages available at any weight. Available for preorder now with early June 2026 delivery.

Suck Creek Cycle is one of the few authorized Amflow dealers in the region, serving riders across Chattanooga, Knoxville, Nashville, Atlanta, and throughout Tennessee, North Georgia, and the greater Southeast. The Amflow PX Carbon Pro is available for preorder now with early June 2026 delivery. We provide professional assembly, full system inspection, and setup support before every handoff. National shipping available. Contact us for preorder details and sizing help.

Who this bike is for

The PX Carbon Pro is for riders who want full eMTB power without the weight penalty that usually comes with it. If you have been putting off going electric because most eMTBs feel heavy and sluggish, the PX changes that conversation. It is built for aggressive trail riders who want to go further, climb harder, and descend faster without dragging extra kilos up every pitch. It is not the right fit if you are looking for a budget entry point into eMTB, or if you want a more upright, comfort-oriented build. This bike is purpose-built for performance.

Avinox M2S motor | 150N·m and whisper quiet

The Avinox M2S Drive Unit is the reason this bike exists. It puts out 150N·m of peak torque in Boost mode, which is a 21.6% increase in torque density over the previous generation, in a motor that weighs just 2.59kg. Multiple high-precision sensors and smart algorithms deliver a linear, natural pedal feel across five assist modes including a specialized Auto mode that reads terrain and riding position in real time. When the trail demands everything, Boost mode is there. And it does all of this at operating noise as low as 45dBA, so you actually hear the trail you are riding.

700Wh integrated battery with 3x fast charging

The 700Wh battery is integrated into the frame and built with custom cells, paired with the included Avinox 508W charger for charging speeds 3x faster than the standard 168W charger. Range was tested at 144km under controlled conditions in Eco mode. Real-world trail range will vary depending on assist level, terrain, rider weight, and conditions, but this is a battery system built to support all-day riding without range anxiety. XL and XXL frame sizes are compatible with the separately sold Avinox RS600 expansion battery for extended range capability.

40 geometry combinations | dial it in for any terrain

The PX Carbon Pro gives you meaningful geometry control, not just marketing language. Five head tube angle positions ranging plus or minus one degree from the 64.2 degree default let you go slacker for high-speed stability or steeper for climbing efficiency. Two bottom bracket height settings at 345mm and 349mm and four chainstay length positions from 438mm to 451mm round out a system that lets you actually tune this bike to match your trails and your riding style.

FOX Factory suspension, Magura brakes, carbon mullet wheels

The PX Carbon Pro runs FOX Factory spec throughout. The FOX 36 Factory fork with 160mm travel and GRIP X2 damper gives you full HSC, LSC, HSR, and LSR adjustment. The FOX Float X Factory rear shock runs a custom tune developed specifically for the PX platform and its suspension kinematics. Braking is Magura Gustav Pro hydraulic disc with 203mm rotors front and rear. The mullet wheel setup pairs a 29-inch carbon front rim with a 27.5-inch carbon rear rim, both 30mm inner width and tubeless ready, running Schwalbe Magic Mary front and Schwalbe Albert rear in Gravity Pro compound for real trail traction.

SRAM X0 Eagle Transmission drivetrain

The PX Carbon Pro is spec'd with the SRAM X0 Eagle Transmission rear derailleur paired with an XS-1295 cassette in 10-52T. The Avinox SL crank runs a 38T chainring optimized for the motor's power delivery. SRAM AXS Pod Rocker Controller handles shifting wirelessly. The SmoothShift function integrates the drivetrain with the Avinox Drive System to allow smooth gear changes even while coasting, keeping your rhythm intact on technical terrain.

Smart system built in, not bolted on

The Avinox Drive System integrates GPS, Bluetooth, OTA updates, and remote locating as standard on the PX Carbon Pro, with IoT 4G connectivity included. Offline navigation supports GPX, FIT, and TCX route imports with turn-by-turn guidance independent of your phone. Smart heart rate control automatically adjusts motor output to keep you in your target zone. The 2-inch OLED Control Display manages ride data, navigation, and system settings on the fly. The system is designed to disappear into your ride, not distract from it.

Quick spec clarity

• Frame: Amflow PX Carbon Pro, ultra-light carbon fiber, approx. 2.4kg
• Complete bike weight: 20.6kg (Size M, tubeless setup)
• Motor: Avinox M2S Drive Unit, 250W rated, 150N·m peak torque, 2.59kg
• Battery: Avinox FP700, 700Wh integrated, 500 charge cycles
• Expansion battery: Avinox RS600 compatible on XL and XXL (sold separately)
• Charger: Avinox 508W included, 3x faster than 168W charger
• Display: Avinox 2-inch OLED Control Display
• Assist modes: Eco, Trail, Turbo, Auto, Boost (5 total)
• Fork: FOX 36 Factory MY2027, 160mm travel, GRIP X2 damper, HSC/LSC/HSR/LSR, 15x110mm, 44mm offset
• Rear shock: FOX Float X Factory MY2027, custom tune, LSC and LSR adjustment, 210x55mm
• Brakes: Magura Gustav Pro hydraulic disc, 4-piston calipers, 203mm Magura Sensor Rotors
• Rear derailleur: SRAM X0 Eagle Transmission
• Cassette: SRAM XS-1295 Eagle Transmission, 10-52T
• Chain: SRAM X0 Eagle Transmission
• Crankset: Avinox SL Crank, 38T (155mm M/L, 160mm XL/XXL)
• Front wheel: Carbon, 29-inch, 30mm inner width, 28H, tubeless ready
• Rear wheel: Carbon, 27.5-inch, 30mm inner width, 32H, tubeless ready
• Front tire: Schwalbe Magic Mary Radial, 29x2.5, Gravity Pro, Ultra Soft, tubeless ready
• Rear tire: Schwalbe Albert Radial, 27.5x2.5, Gravity Pro, Addix Soft, tubeless ready
• Handlebar: Amflow Enduro Carbon, 800mm width, 40mm rise, 35mm diameter
• Stem: Amflow Mountain Bike Split Stem, 35mm length, 35mm clamp
• Saddle: Amflow Mountain Saddle Titanium
• Dropper post: Amflow Dropper Post (190mm M/L, 210mm XL, 230mm XXL)
• Head tube angle: 64.2 degrees default, adjustable from 63.2 to 65.2 in 5 positions
• Chainstay length: 438mm to 451mm, 4 positions
• Bottom bracket height: 345mm or 349mm, 2 positions
• Smart features: GPS, 4G IoT (included on Pro), Bluetooth, OTA updates, offline navigation, remote locating, smart heart rate control, SmoothShift
• Colors: Phantom Black, Moonstone Grey
• Certification: TUV SUD (bike and drive system), TUV Rheinland (charger)
• Availability: Preorder now, early June 2026 delivery

How the PX Carbon Pro compares

The PX Carbon Pro sits at the top of the Amflow PX lineup. The standard PX Carbon uses the same frame and geometry but steps down to FOX Performance spec suspension, alloy wheels, SRAM S1000 drivetrain, and does not include IoT 4G connectivity as standard. The Amflow PR Carbon is the trail-geometry counterpart at a lower entry price starting at $4,999 and is the right call for riders who prioritize value over ultimate component spec. If you are comparing the PX Carbon Pro against other brands in the eMTB category, the Avinox M2S motor and the sub-21kg complete weight are the numbers that set it apart from everything else in this class right now.

Amflow PX Carbon Pro FAQ

What makes the Avinox M2S motor different from other eMTB motors?

The Avinox M2S delivers 150N·m of peak torque with a 21.6% improvement in torque density over the previous generation, at a motor weight of just 2.59kg. It also runs at operating noise as low as 45dBA, which is meaningfully quieter than most motors in this class. The combination of power, weight, and noise suppression in a single unit is what separates it from the competition right now.

How much does the Amflow PX Carbon Pro weigh?

The complete PX Carbon Pro comes in at 20.6kg on a size M in tubeless setup. That is a full-power eMTB with a 700Wh battery at sub-21kg, which is exceptional for the category.

Is the battery removable on the PX Carbon Pro?

The 700Wh Avinox FP700 battery is integrated into the frame on all sizes. XL and XXL frame sizes are compatible with the separately sold Avinox RS600 expansion battery for extended range on longer rides. The integrated battery supports independent removal for charging outside the bike on all sizes.

What is the real-world range on the PX Carbon Pro?

Amflow tested the 700Wh battery at 144km under controlled flat road conditions in Eco mode with an 80kg rider. Real-world trail range will be lower depending on assist level, terrain, rider weight, and conditions. The 3x fast charging capability with the included 508W charger means you can recover meaningful range during a trailhead break rather than waiting hours.

Can I adjust the geometry on the PX Carbon Pro?

Yes. The PX Carbon Pro offers up to 40 geometry combinations through adjustable headset cups with five head tube angle positions, two bottom bracket height settings, and four chainstay length positions. These are real, meaningful adjustments that let you tune the bike for your local trails or your riding style, all included in the box.

Where can I buy an Amflow bike near Chattanooga, Atlanta, or in the Southeast?

Suck Creek Cycle is one of the only authorized Amflow dealers in the Southeast, serving riders in Chattanooga, Knoxville, Nashville, Atlanta, Ellijay, Blue Ridge, and throughout Tennessee, North Georgia, and the surrounding region. You can preorder the PX Carbon Pro directly through us now for early June 2026 delivery. We also support national shipping for buyers outside the region.

Are there any Amflow dealers near the North Georgia mountains?

Yes. Suck Creek Cycle in Chattanooga is one of the closest authorized Amflow dealers to the North Georgia mountain biking corridor, including Ellijay, Blue Ridge, Dalton, and the surrounding trail communities. We are a short drive from some of the best eMTB terrain in the Southeast and are happy to support riders from across the region with preorders, setup, and service. National shipping is also available for buyers who cannot make the trip.

When will my preorder ship?

We are taking preorders now with early June 2026 delivery. Contact us to get your name on the list and confirm sizing. We will follow up with more specific delivery timing as it is confirmed.

Can you ship the Amflow PX Carbon Pro nationally?

Yes. We support national buyers with professional assembly, full system inspection, and secure bike packing for shipment. If you are local to Chattanooga, we can schedule a setup appointment to dial in fit and suspension before you ride.

*Product specifications are subject to change without notice.
